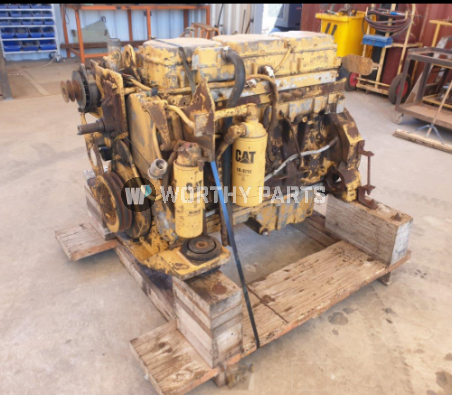

Caterpillar Engine Ar-complete 2235806

This is part of 1632015 - CONVERSION AR-ENGINE MACHINE No 8XZ0318 ONLY, MACHINE No 8XZ0323 & UP, PIN 8XZ00318 ONLY, PIN 8XZ00323 & UP, S/N 7ZR07318 & UP

#223-5806 ENGINE AR-COMPLETE

Part No.	Part Name
20R-0250	LONG BLOCK M
20R-0756	SHORT BLOCK
197-8820	ALTERNATOR GP-CHARGING
3E-7577	ALTERNATOR GP-CHARGING
0R-3615	ALTERNATOR GP -B
161-8089	COOLER GP-ENGINE OIL
145-1740	COOLER GP-TRANSMISSION OIL
124-2673	CONTROL & MTG GP-ENGINE ELEK
117-2791	COVER GP-AIR COMPRESSOR
208-3630	COVER GP-CYLINDER BLOCK
115-2985	COVER GP-CYLINDER BLOCK
127-5728	COVER GP-FLYWHEEL HOUSING
117-2786	COVER GP-OIL FILTER BASE
125-4275	COVER GP-STORAGE
117-2766	DAMPER GP (TYPE 2)
208-1704	DRIVE GP-FAN
145-1680	ELBOW GP-AIR INLET
180-5168	FASTENER GP-DAMPER
138-2539	FASTENER GP-FRONT HOUSING
117-2794	FASTENER GP-FLYWHEEL
132-3154	FASTENER GP-OIL COOLER
116-5413	FILTER GP-FUEL
123-0783	FITTING GP-FUEL LINES
145-1341	FLYWHEEL GP
145-1670	GAUGE GP-OIL LEVEL (DIPSTICK)
180-6666	HOUSING GP-FLYWHEEL
117-2748	LIFTING GP-ENGINE
145-1694	LINES GP-FUEL INJECTION (TYPE 2)
145-1720	LINES GP-FUEL (TYPE 2)
115-9377	LINES GP-TURBOCHARGER OIL
116-5460	LINES GP-WATER
117-2778	LINES GP-WATER
117-2783	LINES GP-WATER
117-2688	MANIFOLD GP-EXHAUST
137-4982	MOUNTING GP-ALTERNATOR
156-0181	MOUNTING GP-ALTERNATOR
138-2551	MOUNTING GP-FAN DRIVE
177-6805	MOUNTING GP-FAN DRIVE
138-2545	MOUNTING GP-REFRIGERANT COMPR (TYPE 1)
145-1691	MOUNTING GP-VALVE MECHANISM
145-1693	PAN GP-OIL
115-2984	PLUG GP-CYLINDER BLOCK
117-0165	PLUG GP-CYLINDER BLOCK
117-0185	PLUG GP-CYLINDER BLOCK
145-1660	PULLEY GP
138-2579	PULLEY GP-CRANKSHAFT
183-2824	PUMP GP-FUEL PRIMING
145-1695	PUMP GP-FUEL TRANSFER
124-2661	SEAL GP-CRANKSHAFT
102-5836	STARTING MOTOR GP-ELECTRIC (TYPE 1)
180-7144	SUPPORT GP-ENGINE
196-8902	WIRING GP-ELECTRONIC CONTROL
225-6057	CAMSHAFT GP
117-2743	CRANKSHAFT GP
132-3208	CYLINDER HEAD GP (TYPE 1)
180-6662	CYLINDER BLOCK GP
223-5950	ELECTRONICS GP
117-2751	FILTER GP-ENGINE OIL (TYPE 2)
117-2750	GEAR GP-FRONT
115-3006	HOUSING GP-FRONT (TYPE 3)
116-5405	MANIFOLD GP-INLET
117-2749	VALVE MECHANISM GP
132-3203	PISTON & ROD GP
0R-8778	CYLINDER PACK AS
138-2028	PLUG GP-ENGINE
117-2746	PUMP GP-ENGINE OIL
117-2674	PUMP GP-WATER (TYPE 1)
189-0351	PUMP GP-FUEL INJECTION
192-2076	TURBOCHARGER GP
117-2760	WIRING GP-UNIT INJECTOR

#197-8820 ALTERNATOR GP-CHARGING Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE MACHINE No 8XZ0423 & UP, PIN 8XZ00423 & UP, ENGINE SERIAL NUMBER 7ZR22165 & UP

Part No.	Part Name
185-2653	FRAME
5S-7349	BOLT-PLT (1/4UNC X 1/2)
185-2639	FAN AS
1H-3244	LOCKWASHER (NO.14)
185-2645	FRAME
2K-4821	NUT-LOCK (5/8UNF)
5P-8247	WASHER-HARD (5/8)
185-2651	COVER
8T-4205	WASHER-HARD-PLT (1/4)
185-2647	GROMMET
9L-6770	CAP
205-0626	STATOR AS-ALTERNATOR
185-2638	COLLAR
185-2654	PLATE
185-2650	ROTOR AS
185-2644	COIL AS
185-2648	REGULATOR AS
6V-8189	NUT-HARD-PLT (5/16UNC)
8T-4224	WASHER-HARD-PLT (M8)
3F-9556	LOCKWASHER (8.4MM ID)
199-7891	TERMINAL KIT
185-2658	HARDWARE KIT
185-2655	BEARING KIT
199-8436	TERMINAL KIT

#3E-7577 ALTERNATOR GP-CHARGING Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE MACHINE No 8XZ0231-00422, PIN 8XZ00231-00422,

Part No.	Part Name
9S-2011	SCREW-MACHINE
1H-3244	LOCKWASHER (NO.14)
2K-4821	NUT-LOCK (5/8UNF)
7F-7621	WASHER
9S-2260	PLATE-COVER
9S-2255	COVER
9S-2262	GASKET
9S-2544	SCREW-HEX HEAD
9B-7233	WASHER-LOCK (NO.8.)
9S-2437	SCREW-TAPPING
8F-1434	LOCKWASHER (5MM ID)
5P-3418	BEARING-ROLLER
5P-3419	RACE-BEARING INNER
9S-2396	BUSHING-TERMINAL
9S-2393	DIODE-NEGATIVE
9N-0943	PLUG-BEARING WELL
9F-2247	PLUG-PIPE
9S-2292	HEAT SINK AS
100-6656	DIODE AS-ALTERNATOR
9S-9830	SCREW-FORMING
8C-9660	WASHER
9S-2300	INSULATOR
9S-2301	INSULATION
9S-2248	COIL & SUPPORT AS
9N-3388	SCREW-SELF LOCKING
3T-6354	REGULATOR AS
7N-9023	SCREW AS
6N-1872	SCREW AS
4B-2043	NUT (NO.8.UNC)
100-6657	PLATE-ALTERNATOR
9S-2302	ROTOR AS
2L-8075	TERMINAL (HORN)
100-6658	WIRE AS-ALTERNATOR
9S-2389	STUD AS
9L-6770	CAP
2P-5616	FRAME-DRIVE END
9S-2390	RETAINER
9X-2500	SCREW-HEX FLANGE
9S-2009	SCREW-HEAD
100-6532	COLLAR-ALTERNATOR
5P-7807	BALL BEARING
100-6531	FAN-ALTERNATOR
9S-3451	STATOR AS
9S-2006	INSULATOR
9S-2005	GROMMET
9S-2014	CLIP
9S-2012	KIT-OUTPUT TERMINAL
9S-2013	KIT-RELAY TERMINAL
9S-2290	KIT-DIODE JUNCTION STUD
9S-2291	KIT-POSITIVE DIODE

#161-8089 COOLER GP-ENGINE OIL Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE ENGINE S/N 7ZR05368 & UP

Part No.	Part Name
100-8525	GASKET
115-4517	CORE AS
0R-8191	CORE AS-OCLR
122-0763	ELBOW
124-5043	COUPLING
131-6645	HOSE
149-4691	ELBOW-TMSN OIL COOLER
155-7970	BONNET-OIL COOLER
301-7298	CLAMP-WAVE LINER
061-7540	SEAL-O-RING (37.69MM ID)
117-3036	SEAL-O-RING
2N-5243	SEAL-O-RING
3E-4352	WASHER (5/16PANEL)
6V-2317	BOLT (M8 X 1.25 X 30)
6V-3918	BOLT (M8 X 1.25 X 50)
6V-5218	BOLT (M8 X 1.25 X 35)
6V-9027	SEAL-O-RING (8.92MM ID)
7M-7410	PLUG-PIPE
7X-7731	PLUG-PIPE (3/4-14 NPTF T
8T-6761	PLUG-PIPE (1-11-1/2 NPTF
9M-1974	WASHER-HARD (M8)
9S-4182	PLUG (7/16-20 THD)

#145-1740 COOLER GP-TRANSMISSION OIL Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE ENGINE S/N 7ZR05368 & UP

Part No.	Part Name
8S-4304	BONNET-TMSN OIL COOLER
1F-2280	SPACER
2S-0795	GASKET
4W-9822	CORE GP-OIL COOLER
0R-5549	CORE GP-O CLR
8M-9307	PLUG-DRAIN
145-1750	BRACKET
0S-1595	BOLT (1/2UNC X 1 1/4)
0S-1587	BOLT (1/2UNC X 1 3/4)
5P-8245	WASHER-HARD (1/2)
6F-7062	WASHER-COPPER (1/2)
8S-9089	BOLT (1/2UNC X 4 1/2)
8T-4121	WASHER-HARD-PLT (M10)
8T-5436	BOLT (M10 X 1.5 X 130)
9X-8873	BOLT (1/2UNC X 2 1/4)

#124-2673 CONTROL & MTG GP-ENGINE ELEK Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
10R-4085	CONT GP -E
8T-0276	BOLT (M8 X 1.25 X 45)
9N-0869	WASHER-HARD (5/16)
9M-1974	WASHER-HARD (M8)
6I-1418	SPACER
8T-9655	MOUNT
6V-3964	WASHER-HARD (5/16)
9X-2097	STUDBOLT
5P-7970	NUT-HARD (M8 X 1.25)
212-9450	CONTROL GP-ENGINE ELECTRONIC

#212-9450 CONTROL GP-ENGINE ELECTRONIC Sub Parts

This is part of 1242673 - CONTROL & MTG GP-ENGINE ELEK

Part No.	Part Name
126-7574	SCREW-PAN HEAD
7X-6315	STRAP-GROUNDING
6V-6703	KIT-RETAINING BOLT

#117-2791 COVER GP-AIR COMPRESSOR Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
117-0218	COVER
117-0219	GASKET
7X-3344	BOLT ( X)
5P-8245	WASHER-HARD (1/2)
9S-8008	PLUG-STOR
9S-8002	PLUG-O-RING (7/16-20 THD)
6V-5048	SEAL-O-RING (8.92MM ID)
9S-8005	PLUG-O-RING (3/4-16 THD)
6V-6609	SEAL-O-RING (16.36MM ID)
6V-5063	SEAL-O-RING
126-0146	HOSE-FUMES DISPOSAL
9M-2904	CLAMP-HOSE
2S-2053	CLIP (34.92MM ID)
6V-3251	SEAL-O-RING
9S-8006	PLUG-O-RING (7/8-14 THD)

#208-3630 COVER GP-CYLINDER BLOCK Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
6V-5217	BOLT (M8 X 1.25 X 20)
6V-3940	BOLT (M8 X 1.25 X 25)
9M-1974	WASHER-HARD (M8)
061-9455	SEAL-O-RING
7C-1445	COVER

#115-2985 COVER GP-CYLINDER BLOCK Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
4P-6587	COVER
6V-5217	BOLT (M8 X 1.25 X 20)
9M-1974	WASHER-HARD (M8)
6V-1250	SEAL-O-RING (39.34MM ID)

#127-5728 COVER GP-FLYWHEEL HOUSING Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9Y-6089	GASKET
0S-1589	BOLT (5/8UNC X 1 3/4)
4D-3704	WASHER-SPECIAL (5/8UNC)
4N-1114	COVER

#117-2786 COVER GP-OIL FILTER BASE Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
7C-9542	COVER-FILTER BASE
5S-9134	SEAL-O-RING

#117-2766 DAMPER GP DAMPER GP (TYPE 2) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 2AW00212-334, 7ZR01897-4031, 5068 & UP, TYPE 2 7ZR04032-5067

Part No.	Part Name
132-3170	ADAPTER
132-3171	DAMPER AS
5M-9709	PLUG-EXPANSION
136-4183	BOLT (M10 X 1.5 X 30)
9X-2027	WASHER-SPECIAL
179-0092	ADAPTER
167-8125	DAMPER AS

#208-1704 DRIVE GP-FAN Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE MACHINE No 8XZ0285 & UP, PIN 8XZ00285 & UP,

Part No.	Part Name
1W-5039	HUB-FAN PULLEY
3B-8489	FITTING
4W-1203	CUP-ROLLER BEARING
4W-1204	CONE-ROLLER BEARING
4W-2042	SPACER
8K-4037	HOSE AS
7E-4808	PLATE
1A-1460	BOLT (1/2UNC X 2)
1F-7958	NUT-HARD (1/2UNC)
2A-1531	BOLT (1/2UNC X 6 1/2)
3B-6552	ELBOW
5P-8245	WASHER-HARD (1/2)
5S-9062	SPACER
6H-3956	PIN
6V-2317	BOLT (M8 X 1.25 X 30)
6V-9748	SEAL-LIP
9M-1974	WASHER-HARD (M8)
136-4722	BRACKET AS-FAN
7E-5816	SHAFT-FAN
208-1706	BRACKET AS

#145-1680 ELBOW GP-AIR INLET Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9N-6379	BOOT-AIR CLEANER ADAPTER
109-4203	ELBOW-AIR INLET
034-1432	STRAP-CABLE
101-3125	GASKET
6V-5218	BOLT (M8 X 1.25 X 35)
8T-6765	PLUG-PIPE (1/4-18 NPTF)
9M-1974	WASHER-HARD (M8)

#180-5168 FASTENER GP-DAMPER Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE

Part No.	Part Name
8T-0281	BOLT (M16 X 2.0 X 80)
5P-8247	WASHER-HARD (5/8)

#138-2539 FASTENER GP-FRONT HOUSING Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
6V-8149	NUT-HARD (M12 X 1.75)
7D-1649	WASHER
8T-0372	BOLT (M12 X 1.75 X 90)

#117-2794 FASTENER GP-FLYWHEEL Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
5P-8247	WASHER-HARD (5/8)
9X-2021	BOLT-LOCKING (M16 X 2.0 X 45)

#132-3154 FASTENER GP-OIL COOLER Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9M-1974	WASHER-HARD (M8)
9X-2099	STUD-BOLT

#116-5413 FILTER GP-FUEL Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE HIGH EFFICENCY

Part No.	Part Name
1R-0749	FILTER AS-FUEL

#123-0783 FITTING GP-FUEL LINES Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE SIPHON BLOCK COMBO INLET

Part No.	Part Name
6V-0852	CAP-DUST
6V-3965	NIPPLE AS
214-7568	SEAL-O-RING

#145-1341 FLYWHEEL GP Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
118-0684	FLYWHEEL AS
4N-2514	GEAR (113 TEETH)
1T-1863	RING-DRIVE
3B-1915	BOLT (3/8UNC X 1 3/8)
5M-2894	WASHER-HARD (3/8)

#145-1670 GAUGE GP-OIL LEVEL (DIPSTICK) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
231-0764	GAUGE AS-OIL LVEL
133-7046	TUBE AS-OIL LEVEL GUIDE
209-7309	PLUG
6V-5215	BOLT (M8 X 1.25 X 16)
3E-4352	WASHER (5/16PANEL)
3P-0647	SEAL-O-RING (13.94MM ID)

#180-6666 HOUSING GP-FLYWHEEL Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
180-6667	HOUSING-FLYWHEEL
307-2673	PLUG AS
238-5080	SEAL-O-RING
9S-8005	PLUG-O-RING (3/4-16 THD)
8T-0226	BOLT (M14 X 2.0 X 45)
5P-8246	WASHER-HARD (9/16)
6V-5219	BOLT (M8 X 1.25 X 40)
9M-1974	WASHER-HARD (M8)
7C-1445	COVER
319-6234	PLUG AS
238-5084	SEAL-O-RING
9S-9334	PLUG (1 5/16-12 THD)
321-8642	PLUG AS
214-7567	SEAL-O-RING
9S-8003	PLUG-O-RING (1/2-20 THD)
8C-8422	SEALANT (11ML)
5D-9344	SEAL-O-RING
061-9455	SEAL-O-RING

#117-2748 LIFTING GP-ENGINE Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
113-9005	PLATE-LIFTING EYE
6V-8197	BOLT (M12 X 1.75 X 40)
5P-8245	WASHER-HARD (1/2)
7C-5736	PLATE-EYE SPACER

#145-1694 LINES GP-FUEL INJECTION (TYPE 2) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 7ZR02598-4236, TYPE 2 S/N 7ZR04237 & UP

Part No.	Part Name
129-2878	BASE AS
9S-4167	STUD-HOLLOW
126-0179	MANIFOLD-FUEL
6V-5218	BOLT (M8 X 1.25 X 35)
9M-1974	WASHER-HARD (M8)
8T-0276	BOLT (M8 X 1.25 X 45)
104-1706	VALVE-REGULATOR
104-1729	SPRING
9S-4191	PLUG-STOR
3J-1907	SEAL-O-RING (11.89MM ID)
9S-8004	PLUG-HEX SOCKET
5P-3456	SEAL-O-RING
030-7947	ELBOW
108-2300	HOSE AS
4J-7533	SEAL-O-RING (6.07MM ID)
9S-8001	PLUG-O-RING (5/16-24 THD)
3P-0647	SEAL-O-RING (13.94MM ID)
6V-5048	SEAL-O-RING (8.92MM ID)
9S-4182	PLUG (7/16-20 THD)
033-8248	CLIP (11.11MM ID)
6V-5839	WASHER-HARD (M10)
6V-6317	BOLT (M10 X 1.5 X 20)
8T-4186	BOLT-PLT (M10 X 1.5 X 40)
8T-4121	WASHER-HARD-PLT (M10)
9C-5344	SPACER
103-0901	HOSE AS
238-6770	BASE AS
6V-4589	SEAL-O-RING (19.18MM ID)
6V-8676	SEAL-O-RING
233-6742	VALVE GP-CHECK

#233-6742 VALVE GP-CHECK Sub Parts

This is part of 1451694 - LINES GP-FUEL INJECTION (TYPE 1)

Part No.	Part Name
6V-4589	SEAL-O-RING (19.18MM ID)
281-2725	VALVE GP-CHECK
033-6033	SEAL-O-RING (12.42MM ID)
6V-6923	RING-BACKUP

#145-1720 LINES GP-FUEL (TYPE 2) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 7ZR03982-5580, TYPE 2 S/N 7ZR05581 & UP

Part No.	Part Name
1K-4649	SPACER
7F-2050	LOCKNUT (3/4UNF)
145-1345	TUBE AS
165-8267	TUBE AS
145-1348	TUBE AS
145-1349	BRACKET-BULKHEAD
118-4728	ELBOW
2P-1281	UNION-BULKHEAD
9S-4185	PLUG-O-RING
3J-1907	SEAL-O-RING (11.89MM ID)
3K-0360	SEAL-O-RING (16.36MM ID)
4D-9517	CLIP (12.7MM ID)
4K-6297	ELBOW-FLARED
6V-4248	BOLT (M10 X 1.5 X 25)
6V-5230	BOLT (M10 X 1.5 X 60)
6V-5839	WASHER-HARD (M10)
145-1346	TUBE AS
180-4514	FILTER GP-PRIMARY FUEL

#180-4514 FILTER GP-PRIMARY FUEL Sub Parts

This is part of 1451720 - LINES GP-FUEL (TYPE 1)

Part No.	Part Name
195-1068	BASE AS-FUEL
170-0061	FILTER AS-FUEL
133-5673	ELEMENT-FILTER
170-0062	BOWL AS-METAL
6V-0682	COCK-DRAIN
141-0284	KIT-FUEL FILTER & WATERSEPARATOR (INCL SEAL & GASKET)

#115-9377 LINES GP-TURBOCHARGER OIL Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE MACHINE No 8XZ0323 & UP, MACHINE No 8XZ0318 ONLY, PIN 8XZ00323 & UP, PIN 8XZ00318 ONLY, S/N 7ZR07318 & UP

Part No.	Part Name
119-2942	ADAPTER
233-6594	HOSE AS-SUPPLY
197-8418	GASKET
197-8419	GASKET
222-7025	TUBE AS-DRAIN
033-6033	SEAL-O-RING (12.42MM ID)
114-2687	SEAL-O-RING (23.16MM ID)
4B-0418	CLIP
5C-7261	NUT-HARD-PLT (M8 X 1.25)
5P-8066	SEAL-O-RING (32.92MM ID)
6V-5218	BOLT (M8 X 1.25 X 35)
6V-8639	CONNECTOR-SEAL
7X-2537	BOLT-PLT (M8 X 1.25 X 35)
8L-2786	SEAL-O-RING (16.36MM ID)
8T-4224	WASHER-HARD-PLT (M8)
9M-1974	WASHER-HARD (M8)

#116-5460 LINES GP-WATER Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
3E-4352	WASHER (5/16PANEL)
6V-3918	BOLT (M8 X 1.25 X 50)
107-5795	TUBE
7L-6580	SEAL-O-RING
105-4208	FLANGE
7E-5555	GASKET

#117-2778 LINES GP-WATER Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
101-1635	GASKET
6V-3918	BOLT (M8 X 1.25 X 50)
9M-1974	WASHER-HARD (M8)
102-8785	ELBOW-WATER PUMP
7X-7731	PLUG-PIPE (3/4-14 NPTF T

#117-2783 LINES GP-WATER Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
5P-8347	BOLT (M8 X 1.25 X 70)
9M-1974	WASHER-HARD (M8)
118-2797	GASKET
6V-3821	BOLT (M8 X 1.25 X 110)
116-5456	HOUSING & REGULATOR GP

#116-5456 HOUSING & REGULATOR GP Sub Parts

This is part of 1172783 - LINES GP-WATER

Part No.	Part Name
8T-6762	PLUG-PIPE
4P-9485	MANIFOLD
8T-6767	PLUG-PIPE (3/8-18 NPTF T
7E-4039	ORIFICE
118-2800	HOUSING AS-REGULATOR
3S-9643	SEAL-LIP
8T-6757	PLUG-PIPE (1/8-27 NPTF)
7E-7912	GASKET
9M-1974	WASHER-HARD (M8)
123-4511	STUD-BOLT
247-7133	REGULATOR-WATER TEMPETATURE

#117-2688 MANIFOLD GP-EXHAUST Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE MACHINE No 8XZ0318 ONLY, MACHINE No 8XZ0323 & UP, PIN 8XZ00318 ONLY, PIN 8XZ00323 & UP, S/N 7ZR07318 & UP

Part No.	Part Name
4P-8279	MANIFOLD-EXHAUST
115-2989	MANIFOLD-EXHAUST
4P-8280	MANIFOLD-EXHAUST
109-5313	GASKET
4P-4369	SPACER
8T-7044	STUD
116-3715	STUD-TAPERLOCK
6V-5839	WASHER-HARD (M10)
3E-8017	NUT-LOCK

#137-4982 MOUNTING GP-ALTERNATOR Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
112-1719	BRACKET
133-7042	BRACKET
137-4981	BRACKET
3E-4352	WASHER (5/16PANEL)
3E-4353	WASHER
6V-1820	BOLT (M10 X 1.5 X 30)
6V-3822	BOLT (M10 X 1.5 X 35)
6V-3940	BOLT (M8 X 1.25 X 25)
6V-8188	NUT-HARD-PLT (1/2UNC)
7X-0339	BOLT (1/2UNC X 6 1/4)
8T-0643	BOLT (M10 X 1.5 X 80)
8T-4223	WASHER-HARD (1/2)

#156-0181 MOUNTING GP-ALTERNATOR Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
115-0635	GUARD-ALTERNATOR
9L-5134	ROD-ALTERNATOR ADJUSTMENT
4W-8320	BLOCK
0S-1587	BOLT (1/2UNC X 1 3/4)
6B-6684	NUT-HARD (1/2UNF)
1F-7958	NUT-HARD (1/2UNC)
9X-8873	BOLT (1/2UNC X 2 1/4)
9R-7882	SPACER
7E-8922	STRAP
6A-5591	BOLT (M12 X 1.75 X 25)
7D-1649	WASHER

#138-2551 MOUNTING GP-FAN DRIVE Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
5R-7137	WASHER
132-3250	STUD

#177-6805 MOUNTING GP-FAN DRIVE Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
125-8116	PLATE AS
9Y-5631	SPACER
5P-8245	WASHER-HARD (1/2)
6V-8004	BOLT (M12 X 1.75 X 120)
6V-8149	NUT-HARD (M12 X 1.75)

#138-2545 MOUNTING GP-REFRIGERANT COMPR (TYPE 1) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 2AW00212-334, 7ZR01897-5370, TYPE 2 S/N 7ZR05371 & UP

Part No.	Part Name
3E-4353	WASHER
133-7014	BRACKET AS
6V-5230	BOLT (M10 X 1.5 X 60)
6V-8149	NUT-HARD (M12 X 1.75)
7D-1649	WASHER
8T-0372	BOLT (M12 X 1.75 X 90)
138-2540	BRACKET

#145-1691 MOUNTING GP-VALVE MECHANISM Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE

Part No.	Part Name
6N-2985	CAP AS-FILLER
9Y-4580	COVER AS-VALVE MECHANISM
176-4168	BRIDGE AS-VALVE
145-1692	COVER AS-VALVE MECHANISM
5P-5678	SEAL
6V-2315	BOLT (M6 X 1.0 X 35)
7X-0909	BOLT (M12 X 1.75 X 140)
9X-8256	WASHER (M6)
116-1083	FASTENER GP-CYLINDER HEAD

#116-1083 FASTENER GP-CYLINDER HEAD Sub Parts

This is part of 1451691 - MOUNTING GP-VALVE MECHANISM

Part No.	Part Name
129-3184	BOLT-HEX ( X)
2S-5658	WASHER-HARD (5/8)

#145-1693 PAN GP-OIL Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
7E-3369	SLEEVE-ISOLATOR
109-5308	GASKET-OIL PAN
126-0166	PAN-OIL
7C-8296	ISOLATOR
6N-8863	WASHER-SPECIAL (3/8)
6V-5230	BOLT (M10 X 1.5 X 60)
8T-6761	PLUG-PIPE (1-11-1/2 NPTF
9X-6451	PLUG-DRAIN
061-9458	SEAL-O-RING
126-0167	BELL AS
6V-8197	BOLT (M12 X 1.75 X 40)
5P-8245	WASHER-HARD (1/2)
5P-8211	SEAL-O-RING
3E-8016	BOLT-LOCKING (M8 X 1.25 X 25)
9M-1974	WASHER-HARD (M8)
1V-8230	SPACER
3E-7427	ADAPTER
7E-4761	VALVE-SHUTOFF
8L-2786	SEAL-O-RING (16.36MM ID)

#115-2984 PLUG GP-CYLINDER BLOCK Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9S-4191	PLUG-STOR
214-7568	SEAL-O-RING

#117-0165 PLUG GP-CYLINDER BLOCK Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
3B-0623	PLUG-CUP (25.73MM AVG O

#117-0185 PLUG GP-CYLINDER BLOCK Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9S-8006	PLUG-O-RING (7/8-14 THD)
6V-4589	SEAL-O-RING (19.18MM ID)

#138-2579 PULLEY GP-CRANKSHAFT Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
136-4295	PULLEY-CRANK

#183-2824 PUMP GP-FUEL PRIMING Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE MACHINE No 8XZ0343 & UP, PIN 8XZ00343 & UP, S/N 7ZR08641 & UP

Part No.	Part Name
9Y-8389	GASKET
183-2823	PUMP AS-FUEL PRIMING
061-7539	SEAL-O-RING
229-3218	VALVE AS
6V-2317	BOLT (M8 X 1.25 X 30)
9M-1974	WASHER-HARD (M8)
8T-0640	BOLT (M6 X 1.0 X 30)
5P-0537	WASHER-HARD (1/4)

#145-1695 PUMP GP-FUEL TRANSFER Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
266-2523	PUMP GP-FUEL TRANSFER
8T-1159	BOLT-SPECIAL ( X)
6V-5839	WASHER-HARD (M10)
107-5769	SEAL-O-RING
1W-2152	COVER
9L-1633	GASKET-DRIVE
092-2570	WASHER

#124-2661 SEAL GP-CRANKSHAFT Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
160-2323	COVER
9X-8267	WASHER-HARD (M6)
8T-0640	BOLT (M6 X 1.0 X 30)
7C-1583	GASKET
294-6007	BOLT
106-1565	PLUG
227-0838	SEAL GP-CRANKSHAFT
100-5421	SEAL GP-CRANKSHAFT
444-2269	SEAL-O-RING (177.17MM ID)

#102-5836 STARTING MOTOR GP-ELECTRIC (TYPE 1) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 2AW00212-334, 7ZR01897-6592, TYPE 2 S/N 7ZR06593 & UP 24 VOLT

Part No.	Part Name
8S-2332	BOLT (5/8UNC X 1 3/4)
4H-7869	GASKET
10R-0400	MOTOR GP-ELEC -C
6V-5539	STARTING MOTOR GP-ELECTRIC
207-1556	STARTING MOTOR GP-ELECTRIC

#6V-5539 STARTING MOTOR GP-ELECTRIC Sub Parts

This is part of 1025836 - STARTING MOTOR GP-ELECTRIC (TYPE 1) S/N 7ZR02598-6592

Part No.	Part Name
10R-0400	MOTOR GP-ELEC -C
10R-0939	MOTOR GP-ELEC
106-8554	STARTING MOTOR GP-ELECTRIC
6V-5540	STARTING MOTOR GP-ELECTRIC

#106-8554 STARTING MOTOR GP-ELECTRIC Sub Parts

This is part of 6V5539 - STARTING MOTOR GP-ELECTRIC S/N 7ZR02598-6592

Part No.	Part Name
8F-1434	LOCKWASHER (5MM ID)
6V-8188	NUT-HARD-PLT (1/2UNC)
8T-8566	TERMINAL AS
7X-0562	WASHER-HARD
3T-3422	WIRE AS
2L-8066	TERMINAL (10 GA)
2L-8071	TERMINAL (10 GA)
7T-3278	HOLDER AS-BRUSH
5S-7349	BOLT-PLT (1/4UNC X 1/2)
8T-4205	WASHER-HARD-PLT (1/4)
7T-3276	ARMATURE AS
20R-5455	ARMATURE AS
4M-1831	PLUG-LEVER HOUSING
7L-2894	GASKET
9X-9511	SOLENOID AS
193-8570	SOLENOID AS-STARTING MOTOR
036-9821	WASHER
7T-3269	BOOT
4M-1828	RETAINER-SPRING
9M-7609	SPRING
4M-1827	RETAINER-SPRING
2H-3429	RING-RETAINING
4B-2049	NUT (NO.10.UNF)
6N-3826	DRIVE AS-MOTOR
20R-5457	DRIVE AS-STARTER
9X-4824	COVER-STARTING MOTOR
8T-0328	WASHER
7T-3277	COIL AS-FIELD
7T-3454	INSULATOR
8H-1141	SHOE-POLE
3F-0379	SCREW-POLE SHOE
7T-3271	CONNECTOR
283-1107	KIT-CONNECTOR
8T-8569	INSULATOR-TERMINAL
7T-3451	INSULATOR-TERMINAL
3E-7775	HOUSING AS
036-9823	BOLT ( X)
7T-3974	HOUSING AS-DRIVE
3T-3434	PLUG (12.7MM OD SPH
7X-3373	BOLT (5/16UNC X)
7T-3270	PLUNGER AS
7T-3279	HOUSING AS
7T-3267	KIT-BUSHING
7T-3268	KIT-LEVER
8C-3655	KIT-BRUSH
8T-9884	KIT-INSULATOR

#6V-5540 STARTING MOTOR GP-ELECTRIC Sub Parts

This is part of 6V5539 - STARTING MOTOR GP-ELECTRIC S/N 7ZR02598-6592

Part No.	Part Name
7X-0562	WASHER-HARD
8T-4244	NUT-HARD-PLT (M12 X 1.75)
5C-2874	NUT
8F-1434	LOCKWASHER (5MM ID)
8T-0328	WASHER

#207-1556 STARTING MOTOR GP-ELECTRIC Sub Parts

This is part of 1025836 - STARTING MOTOR GP-ELECTRIC (TYPE 1) S/N 7ZR06593 & UP

Part No.	Part Name
283-1107	KIT-CONNECTOR
548-9596	KIT-SOLENOID
7T-3267	KIT-BUSHING
7T-3268	KIT-LEVER
7T-3451	KIT-INSULATOR
8C-3655	KIT-BRUSH
8T-9884	KIT-INSULATOR
207-1557	STARTING MOTOR GP-ELECTRIC
6V-0890	STARTING MOTOR GP-ELECTRIC

#207-1557 STARTING MOTOR GP-ELECTRIC Sub Parts

This is part of 2071556 - STARTING MOTOR GP-ELECTRIC S/N 7ZR06593 & UP

Part No.	Part Name
3T-3434	PLUG (12.7MM OD SPH
7T-3279	HOUSING AS
8T-8566	TERMINAL AS
6V-8188	NUT-HARD-PLT (1/2UNC)
7X-0562	WASHER-HARD
3T-3422	WIRE AS
2L-8066	TERMINAL (10 GA)
2L-8071	TERMINAL (10 GA)
7T-3278	HOLDER AS-BRUSH
7T-3277	COIL AS-FIELD
7T-3454	INSULATOR
7T-3271	CONNECTOR
283-1107	KIT-CONNECTOR
7T-3451	INSULATOR-TERMINAL
8T-8569	INSULATOR-TERMINAL
5S-7349	BOLT-PLT (1/4UNC X 1/2)
8T-4205	WASHER-HARD-PLT (1/4)
8H-1141	SHOE-POLE
3F-0379	SCREW-POLE SHOE
7T-3276	ARMATURE AS
20R-5455	ARMATURE AS
3E-7775	HOUSING AS
4M-1831	PLUG-LEVER HOUSING
7L-2894	GASKET
036-9823	BOLT ( X)
6N-3826	DRIVE AS-MOTOR
20R-5457	DRIVE AS-STARTER
7T-3974	HOUSING AS-DRIVE
7X-3373	BOLT (5/16UNC X)
193-8570	SOLENOID AS
250-8279	KIT-SOLENOID
6V-8378	NUT (NO.10.UNF)
8F-1434	LOCKWASHER (5MM ID)
8T-0328	WASHER
9X-4824	COVER-STARTING MOTOR
8T-9884	KIT-INSULATOR
8C-3655	KIT-BRUSH
7T-3268	KIT-LEVER
7T-3267	KIT-BUSHING

#6V-0890 STARTING MOTOR GP-ELECTRIC Sub Parts

This is part of 2071556 - STARTING MOTOR GP-ELECTRIC S/N 7ZR06593 & UP

Part No.	Part Name
7M-0326	CONNECTOR
9H-3757	WASHER
1S-7446	SCREW-MACHINE
8C-9660	WASHER
9S-2544	SCREW-HEX HEAD
7M-0327	WASHER-THRUST
3T-3418	FRAME AS-END
3T-9525	PLATE AS-BRUSH
5P-6298	SCREW - MACHINE
6T-0363	HOLDER AS-BRUSH
6T-0371	INSULATOR
7F-3525	WASHER (3/16)
9F-5599	LOCKWASHER
7F-3491	WASHER
3T-3422	WIRE AS
2J-8163	SEAL-O-RING (117.07MM ID)
7X-3373	BOLT (5/16UNC X)
3T-3434	PLUG (12.7MM OD SPH
5J-5314	BOLT (5/16UNC X 1 1/2)
3L-3380	BUSHING-TERMINAL
036-9821	WASHER
4M-1828	RETAINER-SPRING
4M-1829	BOOT-RUBBER
9M-7606	PLUNGER AS
9M-7609	SPRING
4M-1827	RETAINER-SPRING
8C-3089	SEAL-O-RING (82.22MM ID)
4M-1853	LEVER AS-SHIFT
5M-3034	NUT-LOCK
7L-2894	GASKET
4M-1831	PLUG-LEVER HOUSING
4M-1854	SHAFT-LEVER
1H-1023	SEAL-O-RING (9.25MM ID)
2D-6392	SEAL-O-RING (6.07MM ID)
7T-3974	HOUSING AS-DRIVE
6N-3826	DRIVE AS-MOTOR
20R-5457	DRIVE AS-STARTER
2H-3429	RING-RETAINING
6V-1322	BOLT-PLT (1/4UNC X 3/8)
8T-4205	WASHER-HARD-PLT (1/4)
6N-3279	INSULATOR
036-9823	BOLT ( X)
1M-9971	SPACER
1H-2629	STRIP-INSULATION
7M-0324	COIL AS-FIELD
3F-0379	SCREW-POLE SHOE
7F-3488	SHOE-POLE
7M-8651	ARMATURE AS
20R-5454	ARMATURE AS
7M-0325	INSULATOR-COIL
3T-9524	BRUSH AS
125-6537	INSULATOR
8F-1434	LOCKWASHER (5MM ID)
6V-8188	NUT-HARD-PLT (1/2UNC)
7X-0562	WASHER-HARD
4B-2049	NUT D680 (NO.10.UNF)
8T-0328	WASHER
3T-9494	SPRING-BRUSH
3E-7771	HOUSING AS
9G-4101	BUSHING-END
3T-3424	PLUG-FELT
3T-3423	CUP
1M-9968	BUSHING
2F-6678	SEAL-LIP
4L-2729	WASHER-SPECIAL
4M-1896	BUSHING-TERMINAL
045-4065	SCREW
6V-8373	SCREW-MACHINE
9G-6770	CONTACT AS
6T-1120	BUSHING-TERMINAL
4M-1815	SPRING-CONTACT
125-6535	COVER-STARTING MOTOR
7T-9123	GASKET-PLATE
125-6533	SOLENOID AS
3R-8801	CLAMP-BOOT
125-6536	TERMINAL AS
3N-3763	KIT-TERMINAL

#225-6057 CAMSHAFT GP Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE MACHINE No 8XZ0323 & UP, MACHINE No 8XZ0318 ONLY, PIN 8XZ00323 & UP, PIN 8XZ00318 ONLY, S/N 7ZR07318 & UP

Part No.	Part Name
6V-5217	BOLT (M8 X 1.25 X 20)
9M-1974	WASHER-HARD (M8)
178-3643	PIN-THRUST
133-7068	GASKET-CAMSHAFT COVER
118-0459	COVER
188-5158	CAMSHAFT AS
10R-9478	CAMSHAFT AS
1B-8705	KEY-WOODRUFF
6I-3733	GEAR-CAMSHAFT DRIVE (96 TEETH)
128-0411	JOURNAL
9X-2097	STUDBOLT
4K-9841	WASHER

#117-2743 CRANKSHAFT GP Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
211-0588	BEARING-MAIN (STANDARD)
128-0382	BEARING-MAIN (0.51-MM U.S.)
128-0383	BEARING-MAIN (0.76-MM U.S.)
128-0384	BEARING-MAIN (0.51-MM O.S.)
128-0385	BEARING-MAIN (0.51-MM U.S., 0.51-MM O.S)
246-3144	PLATE-THRUST
211-0587	BEARING-MAIN D756 (STANDARD)
128-0400	BEARING-MAIN (0.51-MM U.S.)
128-0401	BEARING-MAIN (0.76-MM U.S.)
128-0402	BEARING-MAIN D759 (0.51-MM O.S.)
128-0403	BEARING-MAIN D760 (0.51-MM U.S., 0.51-MM O.S.)
326-4278	CRANKSHAFT AS
0R-8195	CRANKSHAFT A-UTN
6V-3536	DOWEL
187-8972	GEAR-CRANKSHAFT (48-TEETH)
9Y-0821	SLEEVE (FRONT)
9Y-0810	SLEEVE-WEAR (REAR)
196-9521	BEARING GP-MAIN (CRANKSHAFT)(STANDARD)

#132-3208 CYLINDER HEAD GP Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 2AW00212-334, 7ZR01897-2667, TYPE 2 S/N 7ZR02668 & UP

Part No.	Part Name
10R-8883	HEAD GP-CYL -UTN
10R-8884	HEAD GP-CYL -UTN
6V-9607	BOLT (M8 X 1.25 X 120)
187-3307	GASKET AS-CYLINDER HEAD
148-2144	CYLINDER HEAD GP (TYPE 2)
187-3306	GASKET AS-CYLINDER HEAD
133-7052	CYLINDER HEAD GP

#148-2144 CYLINDER HEAD GP Sub Parts

This is part of 1323208 - CYLINDER HEAD GP (TYPE 1) TYPE 1 S/N 7ZR02668-4399, TYPE 2 S/N 7ZR04400 & UP 100-8150GUIDE-VALVE

Part No.	Part Name
6I-1638	BASE-INJECTOR POSITIONING
2A-4429	LOCK-RETAINER
133-7029	VALVE-EXHAUST
192-9213	VALVE-INLET
224-4441	INNER SPRING
332-2152	SPRING-VALVE
7E-7977	ROTOCOIL AS
7C-8581	ROTOCOIL AS
7E-7978	SHIELD
179-9458	CYLINDER HEAD AS
148-2145	CYLINDER HEAD AS

#179-9458 CYLINDER HEAD AS Sub Parts

This is part of 1482144 - CYLINDER HEAD GP (TYPE 1) S/N 7ZR04400 & UP FIELD REPLACEMENT ORDER 1799461

Part No.	Part Name
6V-7604	PLUG-CUP
3B-0623	PLUG-CUP (25.73MM AVG O
179-9454	SEAT-VALVE (INTAKE)
179-9453	SEAT-VALVE (EXHAUST)
116-1102	SLEEVE-INJECTOR

#148-2145 CYLINDER HEAD AS Sub Parts

This is part of 1482144 - CYLINDER HEAD GP (TYPE 1) S/N 7ZR02668-4399

Part No.	Part Name
6V-7604	PLUG-CUP
3B-0623	PLUG-CUP (25.73MM AVG O
138-1997	INSERT-VALVE SEAT
138-1999	INSERT-VALVE SEAT
116-1102	SLEEVE-INJECTOR

#133-7052 CYLINDER HEAD GP Sub Parts

This is part of 1323208 - CYLINDER HEAD GP (TYPE 1) S/N 7ZR02598-2667

Part No.	Part Name
100-8150	GUIDE-VALVE
6I-1638	BASE-INJECTOR POSITIONING
2A-4429	LOCK-RETAINER
133-7029	VALVE-EXHAUST
192-9213	VALVE-INLET
214-0586	SPRING-VALVE
7E-7977	ROTOCOIL AS
7C-8581	ROTOCOIL AS
7E-7978	SHIELD
138-1995	CYLINDER HEAD AS

#138-1995 CYLINDER HEAD AS Sub Parts

This is part of 1337052 - CYLINDER HEAD GP FIELD REPLACEMENT ORDER 1382007 S/N 7ZR02598-2667

Part No.	Part Name
6V-7604	PLUG-CUP
3B-0623	PLUG-CUP (25.73MM AVG O
138-1997	INSERT-VALVE SEAT
138-1999	INSERT-VALVE SEAT
116-1102	SLEEVE-INJECTOR

#180-6662 CYLINDER BLOCK GP Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE 204-3451CYLINDER BLOCK AS

Part No.	Part Name
4G-4972	SEAL-O-RING
8C-4403	DOWEL
6V-3538	DOWEL (20MM OAL)
1N-5999	PLUG
5P-7813	SEAL-O-RING (7.65MM ID)
9S-8002	PLUG-O-RING (7/16-20 THD)
6V-5048	SEAL-O-RING (8.92MM ID)

#204-3451 CYLINDER BLOCK AS Sub Parts

This is part of 1806662 - CYLINDER BLOCK GP

Part No.	Part Name
148-2125	LINER-CYLINDER
104-3560	SEAL-LINER
4F-5695	PLUG-CUP
200-2057	CYLINDER BLOCK AS

#200-2057 CYLINDER BLOCK AS Sub Parts

This is part of 2043451 - CYLINDER BLOCK AS

Part No.	Part Name
216-5584	BEARING-SLEEVE
117-0166	CAP-BEARING
175-0454	BOLT-HEX HEAD
5P-8247	WASHER-HARD (5/8)
216-5585	BEARING-SLEEVE
216-5583	BEARING-SLEEVE

#117-2751 FILTER GP-ENGINE OIL (TYPE 2) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 2AW00212-334, 7ZR01897-3740, TYPE 2 S/N 7ZR03741 & UP

Part No.	Part Name
1R-0716	FILTER AS-ENGINE OIL
134-5245	BOLT-HEX (M10 X 1.5 X 30)
6V-5839	WASHER-HARD (M10)
6V-3831	SEAL-O-RING (53.34MM ID)
8C-5230	SEAL-O-RING (43.82MM ID)
166-1329	BASE GP-OIL FILTER
122-0725	BASE GP-OIL FILTER

#166-1329 BASE GP-OIL FILTER Sub Parts

This is part of 1172751 - FILTER GP-ENGINE OIL (TYPE 1) S/N 7ZR03741 & UP

Part No.	Part Name
9M-1974	WASHER-HARD (M8)
166-1328	BASE AS
2P-4304	STUD-TAPERLOCK
3B-0623	PLUG-CUP (25.73MM AVG O
3P-1896	PLUG-CUP
7W-6390	STUD-FILTER BASE
6V-4367	SEAL-O-RING
6V-3940	BOLT (M8 X 1.25 X 25)
7C-2891	COVER
7C-3954	SPRING AS
2N-6005	SPRING
111-2645	VALVE-PUMP BYPASS
6V-8359	BOLT (M6 X 1.0 X 70)
7C-3083	SEAT-RELIEF VALVE SPRING
7C-3082	RETAINER
7C-3081	SPACER
1A-2170	SPRING-RETAINER
9M-0853	PLUNGER-RELIEF VALVE
288-3803	SPRING AS
4N-8150	SPRING
9S-4185	PLUG-O-RING
8L-2786	SEAL-O-RING (16.36MM ID)
9X-2097	STUDBOLT

#122-0725 BASE GP-OIL FILTER Sub Parts

This is part of 1172751 - FILTER GP-ENGINE OIL (TYPE 1) S/N 7ZR02598-3740 6V-5217BOLT (M8 X 1.25 X 20)

Part No.	Part Name
9M-1974	WASHER-HARD (M8)
122-0726	BASE AS-OIL FILTER
3B-0623	PLUG-CUP (25.73MM AVG O
3P-1896	PLUG-CUP
7W-6390	STUD-FILTER BASE
2P-4304	STUD-TAPERLOCK
6V-3940	BOLT (M8 X 1.25 X 25)
7C-2891	COVER
7C-3954	SPRING AS
2N-6005	SPRING
111-2645	VALVE-PUMP BYPASS
6V-8359	BOLT (M6 X 1.0 X 70)
7C-3083	SEAT-RELIEF VALVE SPRING
7C-3082	RETAINER
7C-3081	SPACER
1A-2170	SPRING-RETAINER
9M-0853	PLUNGER-RELIEF VALVE
7C-3953	SPRING AS
8M-3182	SPRING
9S-4185	PLUG-O-RING
8L-2786	SEAL-O-RING (16.36MM ID)
6V-4367	SEAL-O-RING
9Y-3902	VALVE
9X-2097	STUDBOLT

#117-2750 GEAR GP-FRONT Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9Y-3520	GEAR AS (61 TEETH)
7C-7852	BEARING
8T-0281	BOLT (M16 X 2.0 X 80)
7C-7851	SHAFT
133-7086	GEAR AS-IDLER
133-7083	SHAFT

#115-3006 HOUSING GP-FRONT Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 2AW00212-334, 7ZR01897-3740

Part No.	Part Name
136-4296	HOUSING AS-FRONT
6V-5219	BOLT (M8 X 1.25 X 40)
9M-1974	WASHER-HARD (M8)
262-7131	COVER AS
174-2475	SEAL-INTEGRAL
262-8382	GASKET
226-4755	SEAL GP-CRANKSHAFT
169-4166	SEAL GP-CRANKSHAFT
220-3373	SEAL-RING
6V-8225	NUT-HARD (M6 X 1.0)
6V-3940	BOLT (M8 X 1.25 X 25)
3E-8016	BOLT-LOCKING (M8 X 1.25 X 25)
5P-0537	WASHER-HARD (1/4)
2A-3348	DOWEL
6V-3538	DOWEL (20MM OAL)
8T-0343	BOLT (M12 X 1.75 X 55)
3H-7654	WASHER (1/2HARD)
2H-5549	RING-RETAINING
115-9424	GEAR-PUMP DRIVE (34 TEETH)
8H-9789	BALL BEARING
6V-2317	BOLT (M8 X 1.25 X 30)
126-0098	GASKET
3H-0976	SEAL-O-RING
130-0910	COVER AS
126-2418	SEAL
126-0098	GASKET
126-0110	SEAL GP-CRANKSHAFT

#116-5405 MANIFOLD GP-INLET Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
7W-5164	GASKET
6V-5839	WASHER-HARD (M10)
6V-7981	BOLT (M10 X 1.5 X 70)
6V-5842	BOLT (M10 X 1.5 X 40)
116-5406	MANIFOLD-INLET
8T-6767	PLUG-PIPE (3/8-18 NPTF T
8T-6765	PLUG-PIPE (1/4-18 NPTF)
9S-4191	PLUG-STOR
3J-1907	SEAL-O-RING (11.89MM ID)

#117-2749 VALVE MECHANISM GP Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9X-8267	WASHER-HARD (M6)
8T-0275	BOLT (M6 X 1.0 X 50)
3E-4352	WASHER (5/16PANEL)
8T-0100	BOLT (M8 X 1.25 X 60)
7C-8292	ISOLATOR
9Y-7215	SLEEVE-ISOLATOR
9Y-4357	BREATHER AS
9Y-1758	GASKET-BREATHER
102-5842	BASE-VALVE COVER
109-5309	GASKET-BASE
104-3567	PUSHROD-VALVE
104-3568	PUSHROD-INJECTOR
9M-1974	WASHER-HARD (M8)
6V-5217	BOLT (M8 X 1.25 X 20)
115-9397	ROCKER ARM GP
148-2063	LIFTER GP-VALVE

#115-9397 ROCKER ARM GP Sub Parts

This is part of 1172749 - VALVE MECHANISM GP

Part No.	Part Name
115-9398	ARM-VALVE ROCKER
10R-1707	ARM-VALVE ROCKER
115-9400	ARM AS
10R-1798	ARM AS-V ROCKER
2D-6642	BALL
115-9399	ARM-VALVE ROCKER
10R-1797	ARM-VALVE ROCKER
7C-1798	SCREW-ARM ADJUSTABLE
245-6095	NUT-HEX THIN
258-8721	BUTTON
8L-2777	SEAL-O-RING (10.77MM ID)
115-9403	SHAFT AS
3S-6605	PLUG-CUP
096-0014	PIN-SPRING
185-4461	SUPPORT AS
180-1538	DOWEL
260-7524	SCREW-VALVE ADJG
2Y-5829	NUT-HARD (M10 X 1.5)

#148-2063 LIFTER GP-VALVE Sub Parts

This is part of 1172749 - VALVE MECHANISM GP

Part No.	Part Name
251-1005	LIFTER AS-VALVE
202-7475	LIFTER AS-UNIT INJECTOR
148-2065	BRACKET AS
129-2893	DOWEL
245-9129	SHAFT AS-LIFTER
0L-1026	PLUG-CUP
148-2064	BRACKET AS
6V-3537	DOWEL

#132-3203 PISTON & ROD GP Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE 16:1 RATIO

Part No.	Part Name
133-7098	CROWN AS-PISTON
0R-8778	CYLINDER PACK AS
197-9335	PIN AS-PISTON
217-0577	BEARING-CONNECTING ROD
155-6629	ROD AS-CONN
7W-5844	BEARING
7C-8639	BOLT-CONNECTING ROD ( X)
219-4458	DOWEL
238-2710	SKIRT-PISTON
168-7212	RING-PISTON
109-5319	RING-PISTON (INTERMEDIATE)
274-1587	TUBE AS
3E-4352	WASHER (5/16PANEL)
8T-0100	BOLT (M8 X 1.25 X 60)
4P-1659	RING-PISTON (OIL)
0R-8188	ROD AS-CONN

#138-2028 PLUG GP-ENGINE Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
9S-4182	PLUG (7/16-20 THD)
9S-4191	PLUG-STOR
8T-6762	PLUG-PIPE
3J-1907	SEAL-O-RING (11.89MM ID)
6V-5048	SEAL-O-RING (8.92MM ID)

#117-2746 PUMP GP-ENGINE OIL Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
8J-4351	SEAL-O-RING (44.04MM ID)
9M-1974	WASHER-HARD (M8)
3E-8016	BOLT-LOCKING (M8 X 1.25 X 25)
6V-2317	BOLT (M8 X 1.25 X 30)
3E-4352	WASHER (5/16PANEL)
115-3003	TUBE AS
6V-5134	SEAL-O-RING
061-8561	SEAL-O-RING (40.87MM ID)
122-0760	ELBOW-OIL PUMP
7C-1821	COUPLING
7C-1822	COUPLING
5P-8068	SEAL-O-RING
6V-5221	BOLT (M8 X 1.25 X 80)
6V-3834	SEAL-O-RING (88.57MM ID)
10R-2296	PUMP GP-ENG OIL
233-5220	PUMP GP-ENGINE OIL

#233-5220 PUMP GP-ENGINE OIL Sub Parts

This is part of 1172746 - PUMP GP-ENGINE OIL

Part No.	Part Name
9Y-8076	SHAFT AS-OIL PUMP
6D-7146	SEAL-O-RING (101.27MM ID)
6V-2317	BOLT (M8 X 1.25 X 30)
9M-1974	WASHER-HARD (M8)
9Y-8075	SHAFT AS-OIL PUMP

#117-2674 PUMP GP-WATER (TYPE 1) Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE TYPE 1 S/N 2AW00212-334, TYPE 2 7ZR01897-5547, TYPE 3 7ZR05558 & UP

Part No.	Part Name
6V-5221	BOLT (M8 X 1.25 X 80)
9M-1974	WASHER-HARD (M8)
6V-7350	SEAL-O-RING (113.97MM ID)
100-6944	PUMP GP-WATER
0R-0705	PUMP GP-WATER -B
153-8053	PUMP GP-WATER
176-7000	PUMP GP-WATER

#153-8053 PUMP GP-WATER Sub Parts

This is part of 1172674 - PUMP GP-WATER (TYPE 1) S/N 7ZR01897-5547

Part No.	Part Name
105-4213	COVER-PUMP
105-4210	GASKET
6V-3940	BOLT (M8 X 1.25 X 25)
9M-1974	WASHER-HARD (M8)
7X-7731	PLUG-PIPE (3/4-14 NPTF T
8T-6762	PLUG-PIPE
147-5088	SEAL AS-WATER PUMP
105-4212	SHAFT-WATER PUMP
105-4209	IMPELLER-PUMP
119-3025	FILTER-WATER
147-3781	KIT-GASKET (INCLUDES O-RING, GASKETS)
422-2484	KIT-GASKET

#176-7000 PUMP GP-WATER Sub Parts

This is part of 1172674 - PUMP GP-WATER (TYPE 1) S/N 7ZR05548 & UP

Part No.	Part Name
9Y-3513	GEAR (41 TEETH)
105-4210	GASKET
147-5088	SEAL AS-WATER PUMP
6V-9666	WASHER-HARD
176-6995	COVER-PUMP
176-6997	SHAFT
176-6998	IMPELLER-PUMP
176-6999	HOUSING AS-PUMP
1B-3867	BALL BEARING
6V-3940	BOLT (M8 X 1.25 X 25)
7X-7731	PLUG-PIPE (3/4-14 NPTF T
8C-3100	SEAL-LIP
8T-6762	PLUG-PIPE
6V-5842	BOLT (M10 X 1.5 X 40)
8T-9598	RING-RETAINING
9M-1974	WASHER-HARD (M8)

#100-6944 PUMP GP-WATER Parts

This is part of 1172674 - PUMP GP-WATER (TYPE 1) S/N 2AW00212-334

Part No.	Part Name
105-4213	COVER-PUMP
105-4210	GASKET
6V-3940	BOLT (M8 X 1.25 X 25)
9M-1974	WASHER-HARD (M8)
7X-7731	PLUG-PIPE (3/4-14 NPTF T
8T-6762	PLUG-PIPE
105-4211	SEAL AS-PUMP
105-4212	SHAFT-WATER PUMP
105-4209	IMPELLER-PUMP
134-8270	GASKET KIT

#189-0351 PUMP GP-FUEL INJECTION Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE SERIAL NUMBER 8XZ0323 & UP, SERIAL NUMBER 8XZ0318 ONLY

Part No.	Part Name
203-7685	INJECTOR GP-FUEL
215-3198	SEAL-FUEL SYSTEM
119-8784	SEAL-O-RING
9X-7317	SEAL-O-RING
152-3001	BOLT ( X)
7C-8851	CLAMP-INJECTOR
4P-8525	SPACER

#192-2076 TURBOCHARGER GP Sub Parts

This is part of 2235806 - ENGINE AR-COMPLETE MACHINE No 8XZ0323 & UP, MACHINE No 8XZ0318 ONLY, PIN 8XZ00323 & UP, PIN 8XZ00318 ONLY, S/N 7ZR07318 & UP

Part No.	Part Name
194-1116	TURBOCHARGER GP
0R-7691	TURBO GP-BASIC
3E-8017	NUT-LOCK
1S-4295	GASKET-TURBOCHARGER

#194-1116 TURBOCHARGER GP Sub Parts

This is part of 1922076 - TURBOCHARGER GP MACHINE No 8XZ0318 ONLY, MACHINE No 8XZ0323 & UP, PIN 8XZ00318 ONLY, PIN 8XZ00323 & UP, S/N 7ZR07318 & UP

Part No.	Part Name
4W-9977	CLAMP AS
7M-9918	NUT-SELF LOCK (1/4UNF)
123-8251	HOUSING-TURBINE
1W-9311	CLAMP AS
130-2630	COVER-COMPRESSOR
190-6222	CARTRIDGE GP-TURBOCHARGER
0R-7581	CARTRIDGE GP -A

#117-2760 WIRING GP-UNIT INJECTOR Sub Parts

This is part of 1451730 - ENGINE AR-COMPLETE

Part No.	Part Name
4P-9537	HARNESS AS-WIRING
3E-7990	RECEPTACLE AS
103-8133	KIT-RECEPTACLE
2V-3216	CLIP (9.52MM ID)
7X-2468	CLIP
7E-6508	CAP AS
6V-8214	BOLT (M6 X 1.0 X 20)
5P-0537	WASHER-HARD (1/4)
